Feature:

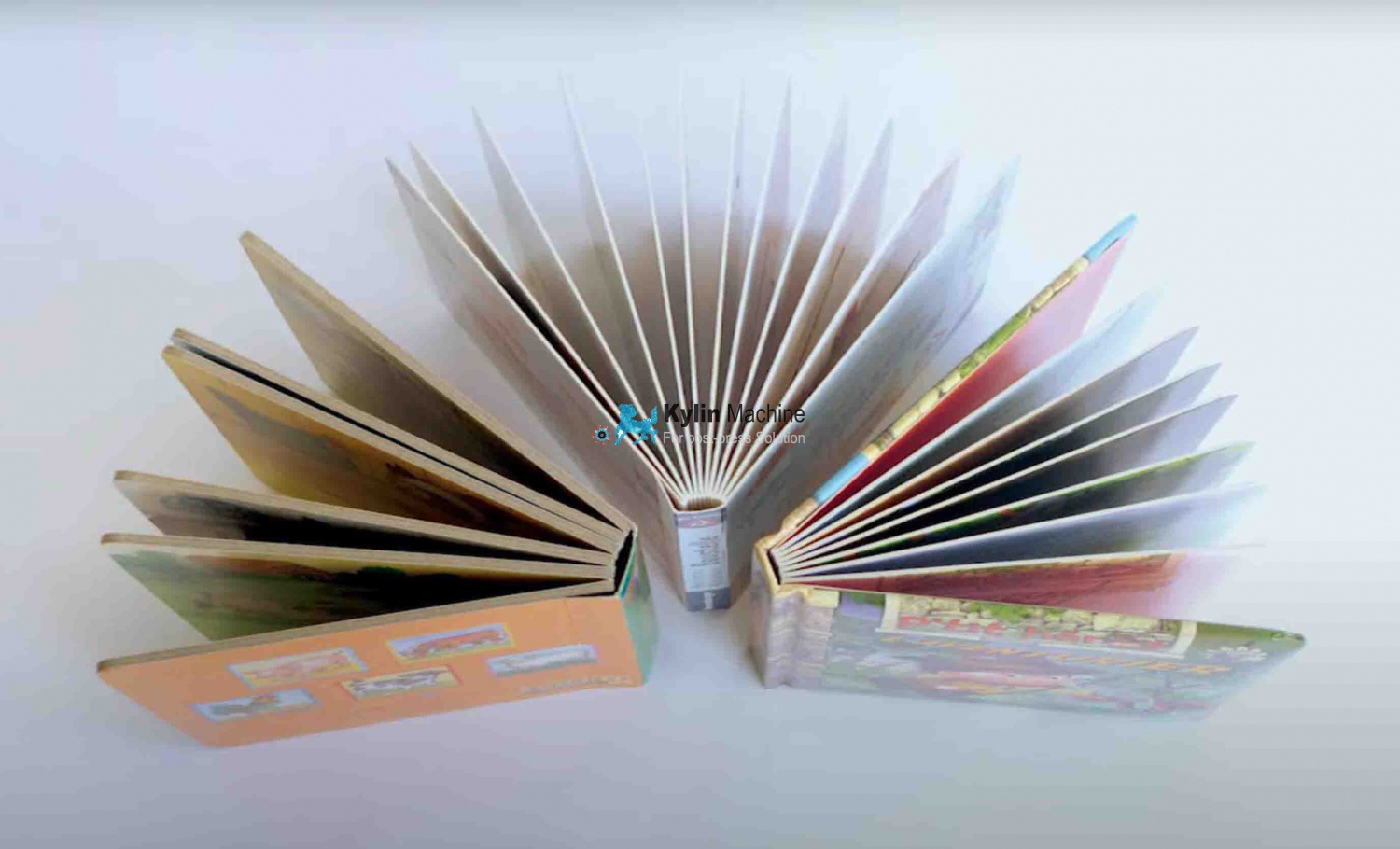

Lay-Flat Binder of Children Board Book Binding Machine is designed to build a book block consisting of any number of quarter-folded four-page sections printed on one side only, which are glued together.

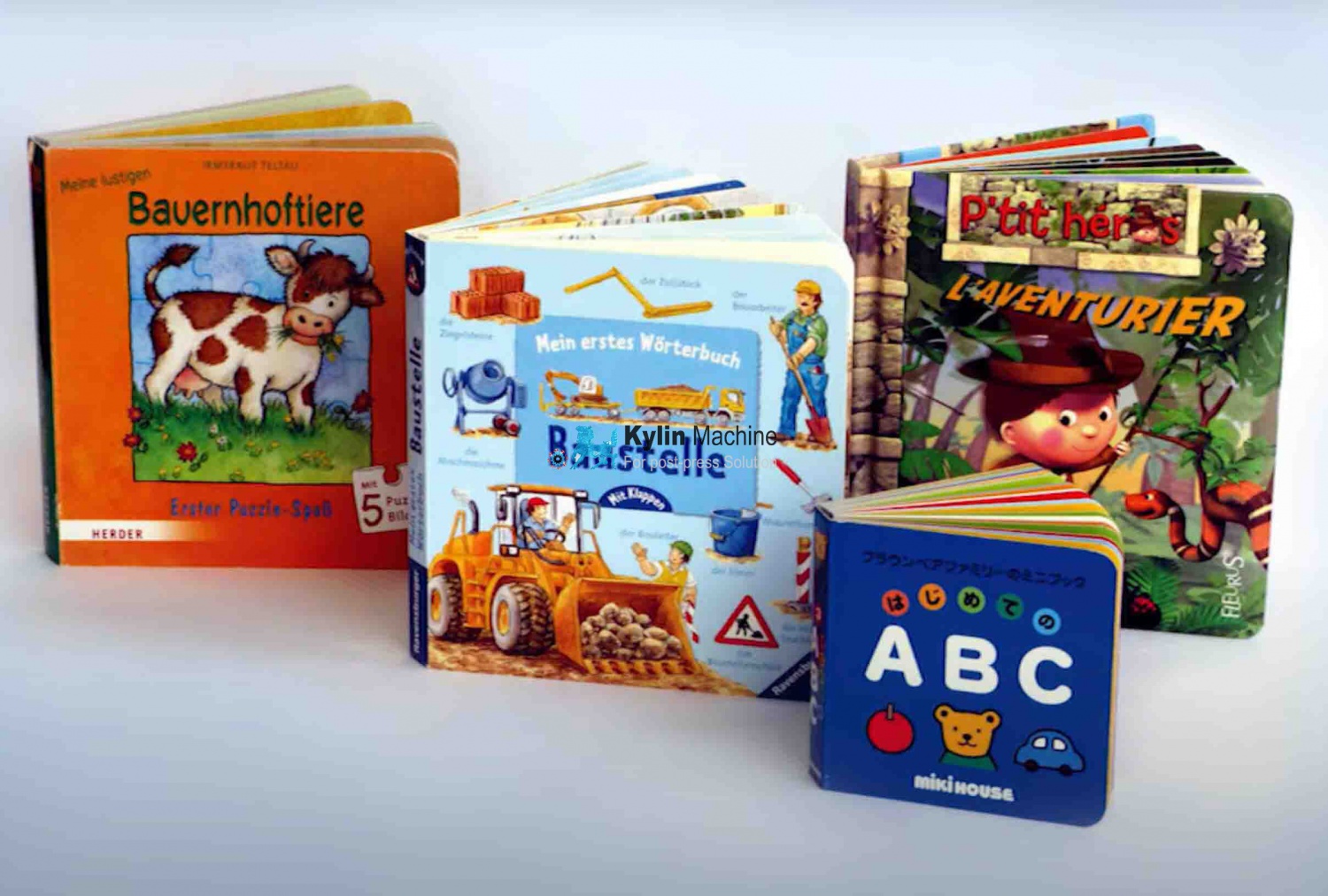

This type of book block preparation is required in particular for the production of digitally printed albums, photo books or board books for children in high and medium quantities.
The machine can use water based glue with grid glue roller that can work on full area of board without slipping out of edge of the board.
Considering the book dimension from 40 to 600 mm, the gluing system is built from grid coating roller designed from exported manufacturer on paper field.

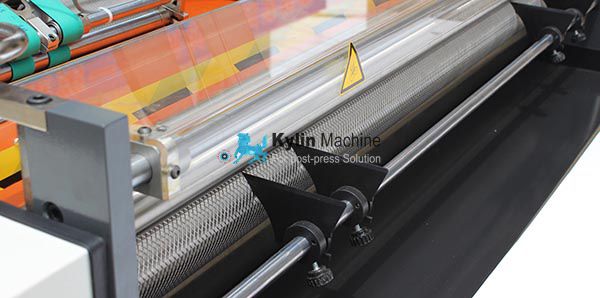

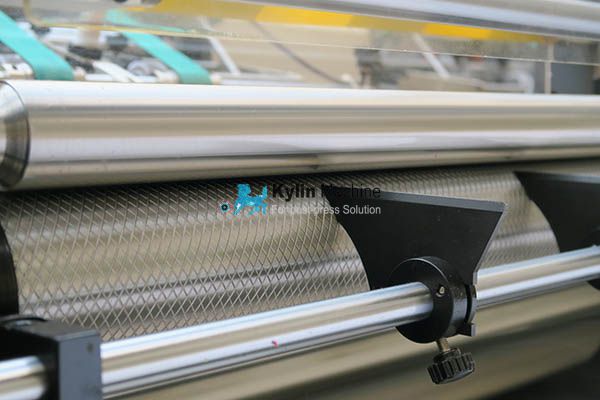

Special processed grid coating roller (hardness 12)

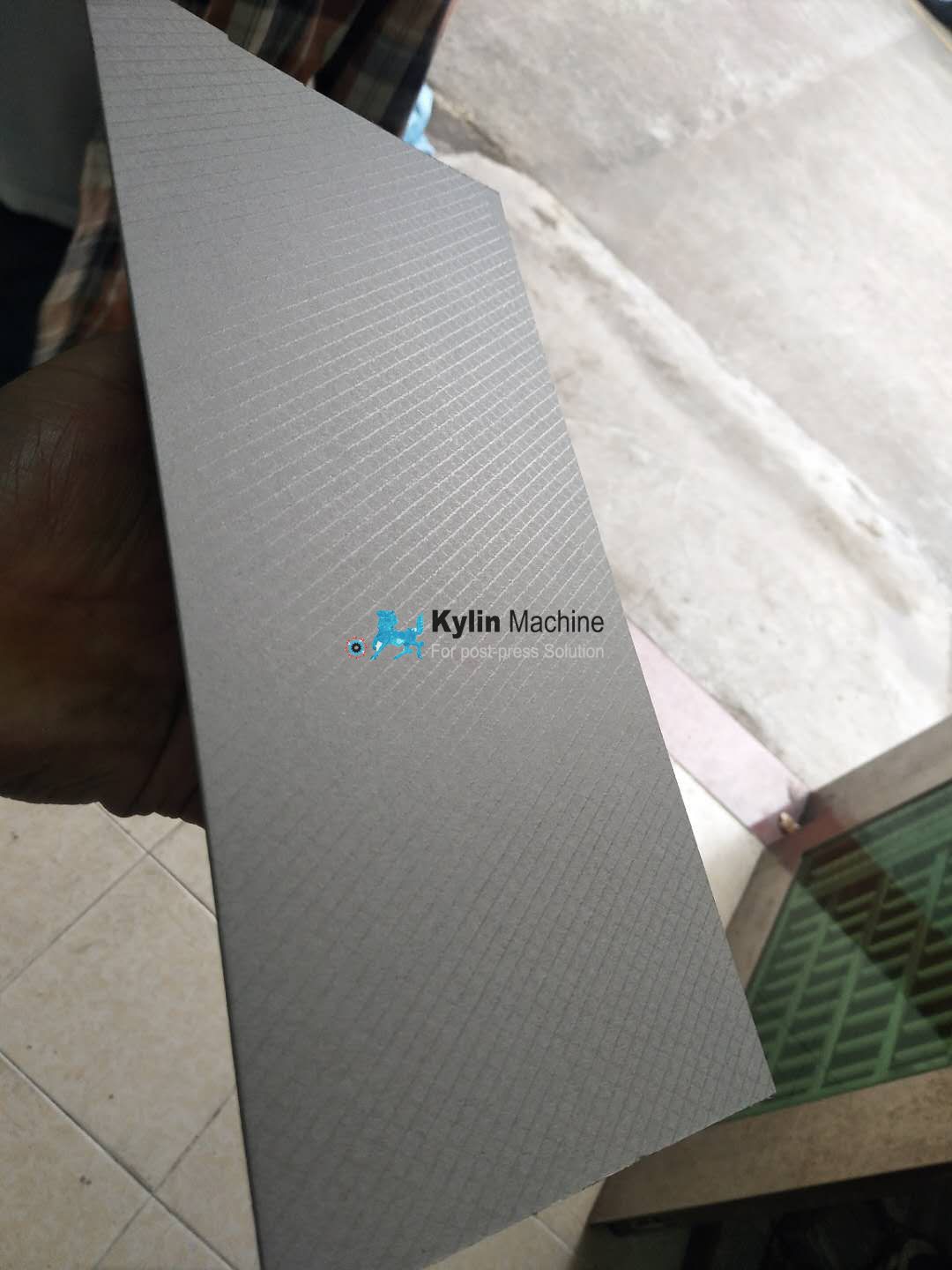

The grid coating roller, not only can save the glue materails, but also apply the glue smoothly on the sureface of board, easily control the thickness of glue, No chance the glue slipped out of the edge of board

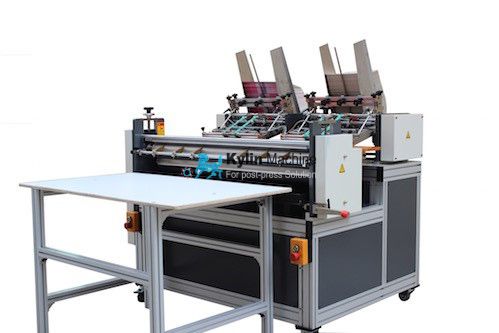

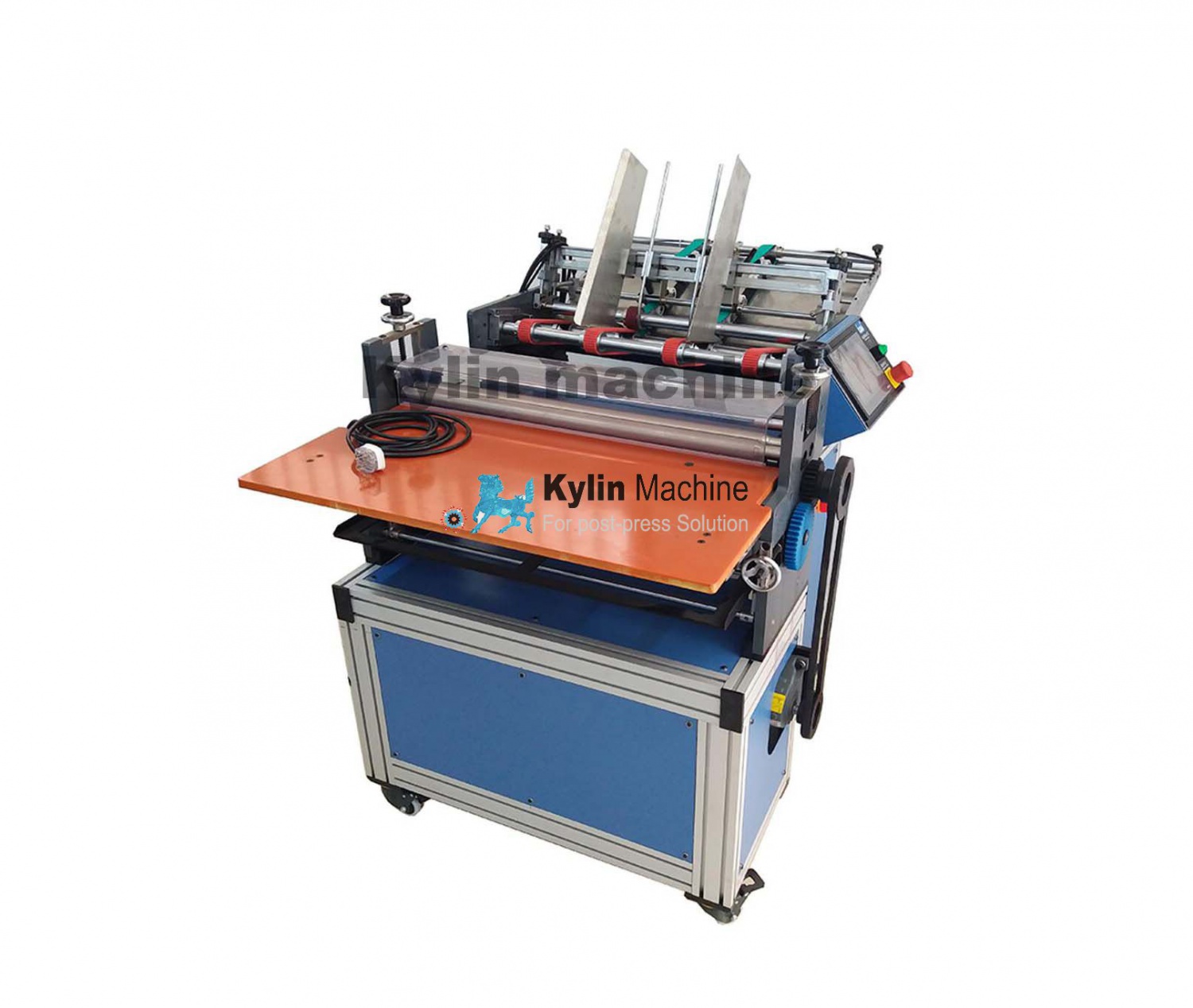

Children board book machine
Specification
| Model | Ky-600S |
| Max sheet size | 600*300mm |
| Mini sheet size | 50*80mm |
| Board Thickness | 200g-4mm |

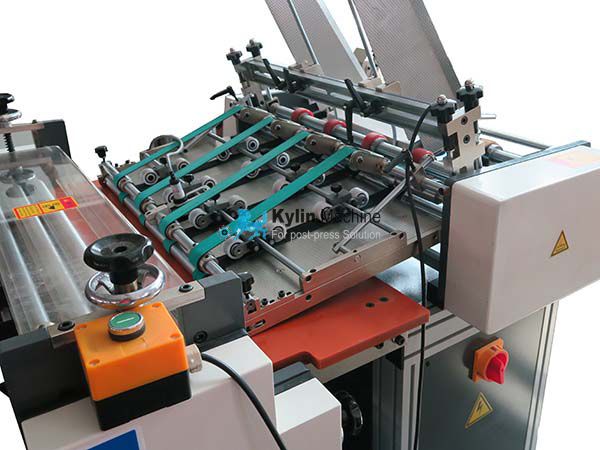

| Feeder | One feeder head/ can be requiped two feeder heads as per required |
| Glue width | 600mm |
| Diameter of gluer roller | 78mm |
| Working speed | 60pcs board/min |
| Power | 0.5Kw |
| Machine dimension | 800X700X1100mm |
| Machine weight | 300Kg |
