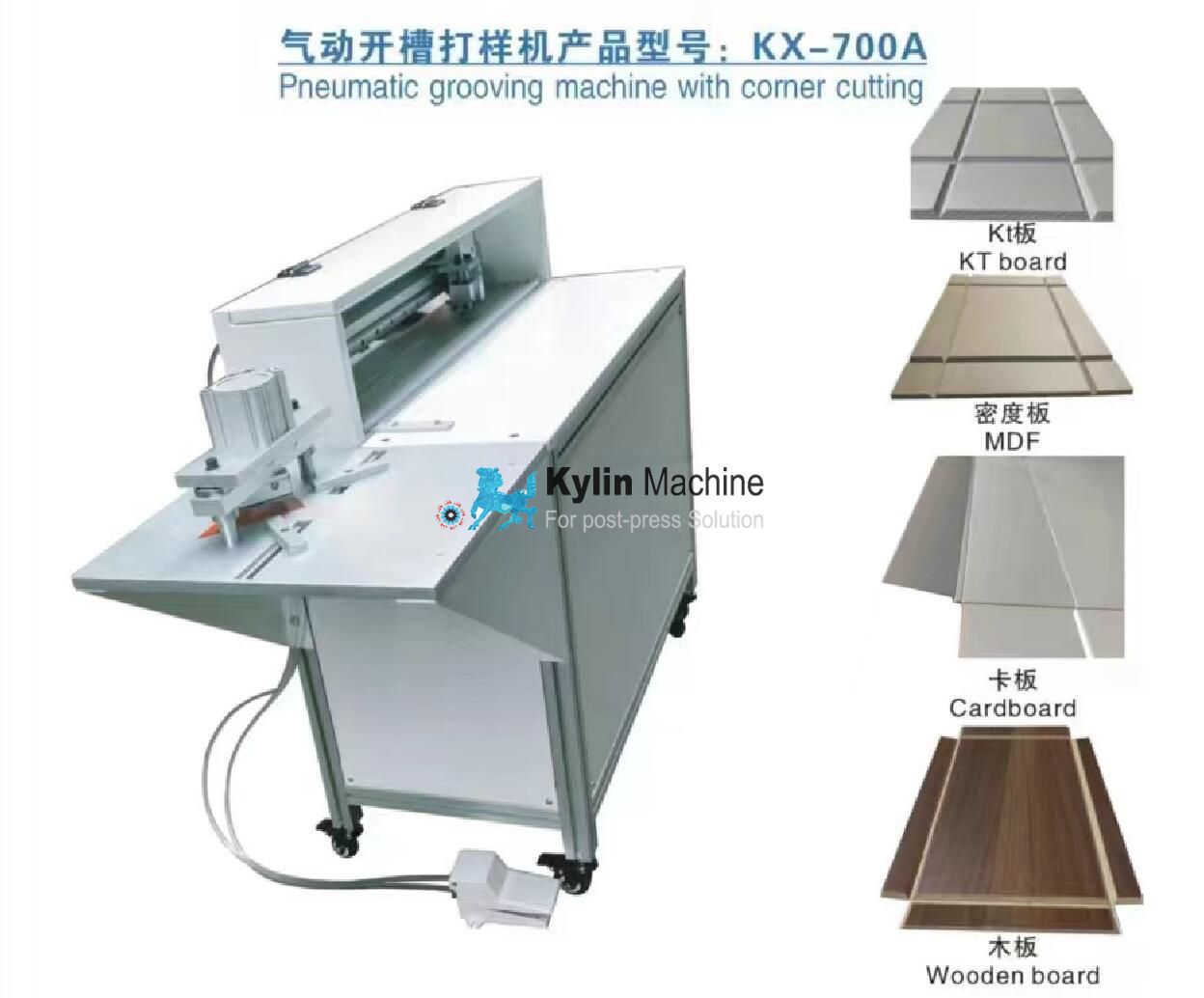

A manual groove machine with corner cutter is a device used in paper and cardboard processing to create grooves and corners on sheets of paper or cardboard
With air power, the manual groove machine with corner cutter is a device used in paper and cardboard processing to create grooves and corners on sheets of paper or cardboard. The corner cutter attachment is used to create die corners cut on the paper or cardboard, while the groove machine is used to create creases or folds in the material for easy bending or folding. This type of machine is commonly used in print shops, bookbinding, and other paper processing industries.
Specification:
| Model | Ky-700A |
| Groove length | 0-650mm |
| Application materials | MDF board, Gray board, paper board |
| Thickness of board | 1-5mm |
| Groove angle | 90°/120°/145° |
| Corner cutting length | 0-80mm |
| Electronic power | 220V |
| Air power | 0.6mpa |
| Machine dimension | 1360X450X950mm |
| Machine weight | 100Kg |
