Max Stamp size: 550X450mm
Stamping precision: ±0.1mm
Pressure power: 10T
Overlay the stamped logo
Online Video:
Max Stamp size: 550X450mm
Stamping precision: ±0.1mm
Pressure power: 10T
Overlay the stamped logo

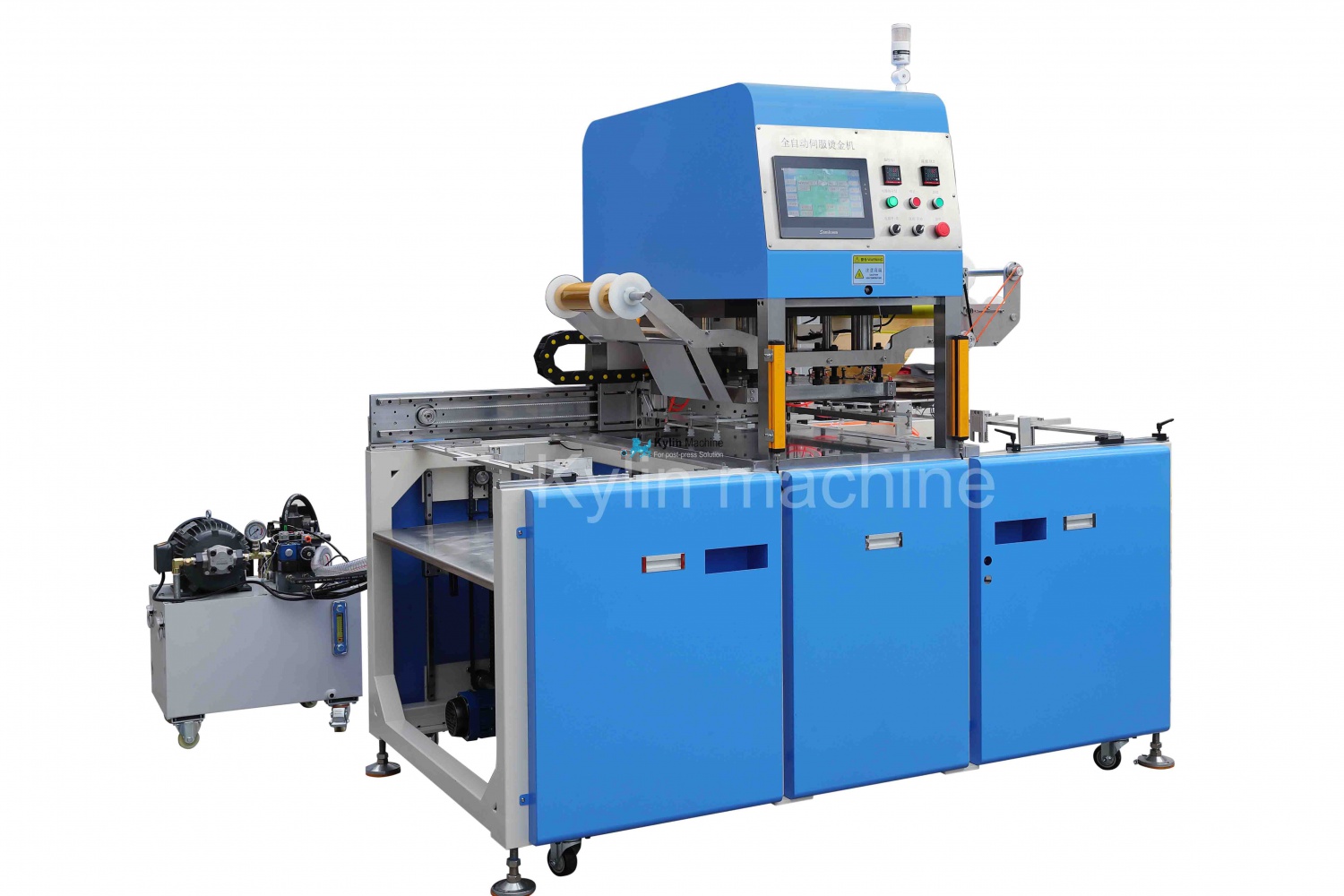

Auto Falt Hydraulic Power Hot Stamp Machines Ky-800S are used for applying large labels requiring extensive pressure.
These machines typically range from 7 to 15 tons of force and have longer stroke lengths.
They are often used for decorating large items such as Luxury package, buckets, pails, cases, and garbage cans.
The machines typically have a heavy-duty machine frame, a hydraulic power unit with a 5HP TEFC 230/460 VAC 3 phase electric motor,
and a high performance oil pump.
The Large Pressure Hydraulic Hot Stamping Machines (H-TCH-500) have a power rate of 220V 50HZ, a stamping area of 300 x 400mm, 400x400mm, or 450x550mm, and a stamping pressure of 20 tons.
| Model | Ky-500S | Ky-700S | Ky-800S |
| Max paper size | 500X500mm | 700X550mm | 800X550mm |
| Min paper size | 100X100mm | 100X100mm | 100X100mm |
| Max stamp size | 150X150mm | 300X200mm | 550X450mm |
| Min stamp size | 10X10mm | 10X10mm | 10X10mm |
| Voltage | 380V | 220V | 380V |
| Power | 2.5KW | 3.5KW | 9.25KW |
| Max pressure | 1.5T | 2.5T | 10T |
| Stamping Prescision | ±0.2mm | ±0.1mm | ±0.1mm |
| Stamping Speed | 1200-1500Pcs/H | 1200-1500Pcs/H | 1200-1500Pcs/H |
| Machine dimension | 1700X825X1664mm | 2000X1100X1772mm | 2100X1400X2100mm |
| Machine Weight | 620Kg | 810Kg | 1600Kg |
