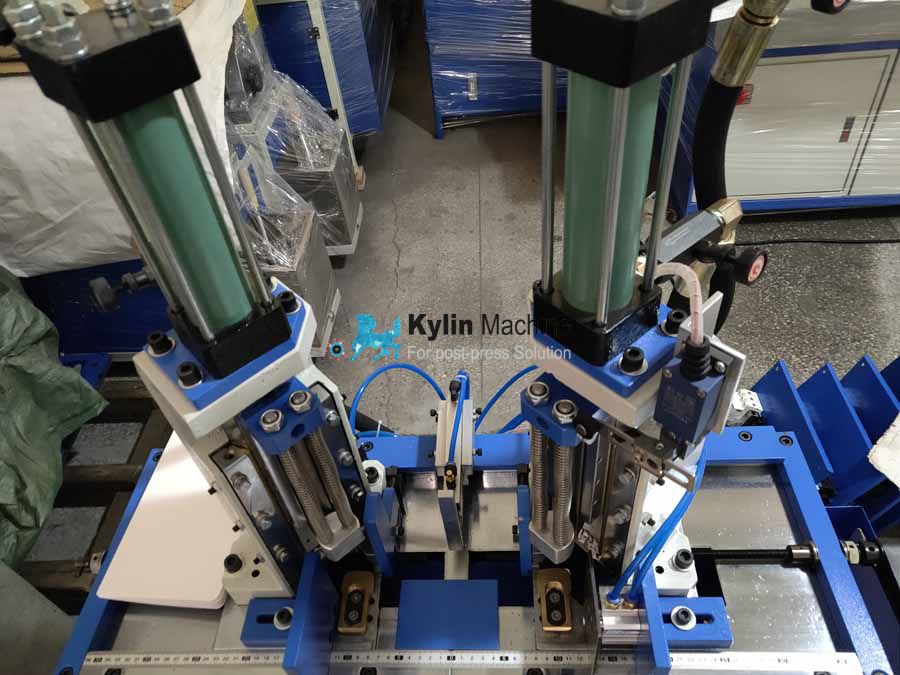

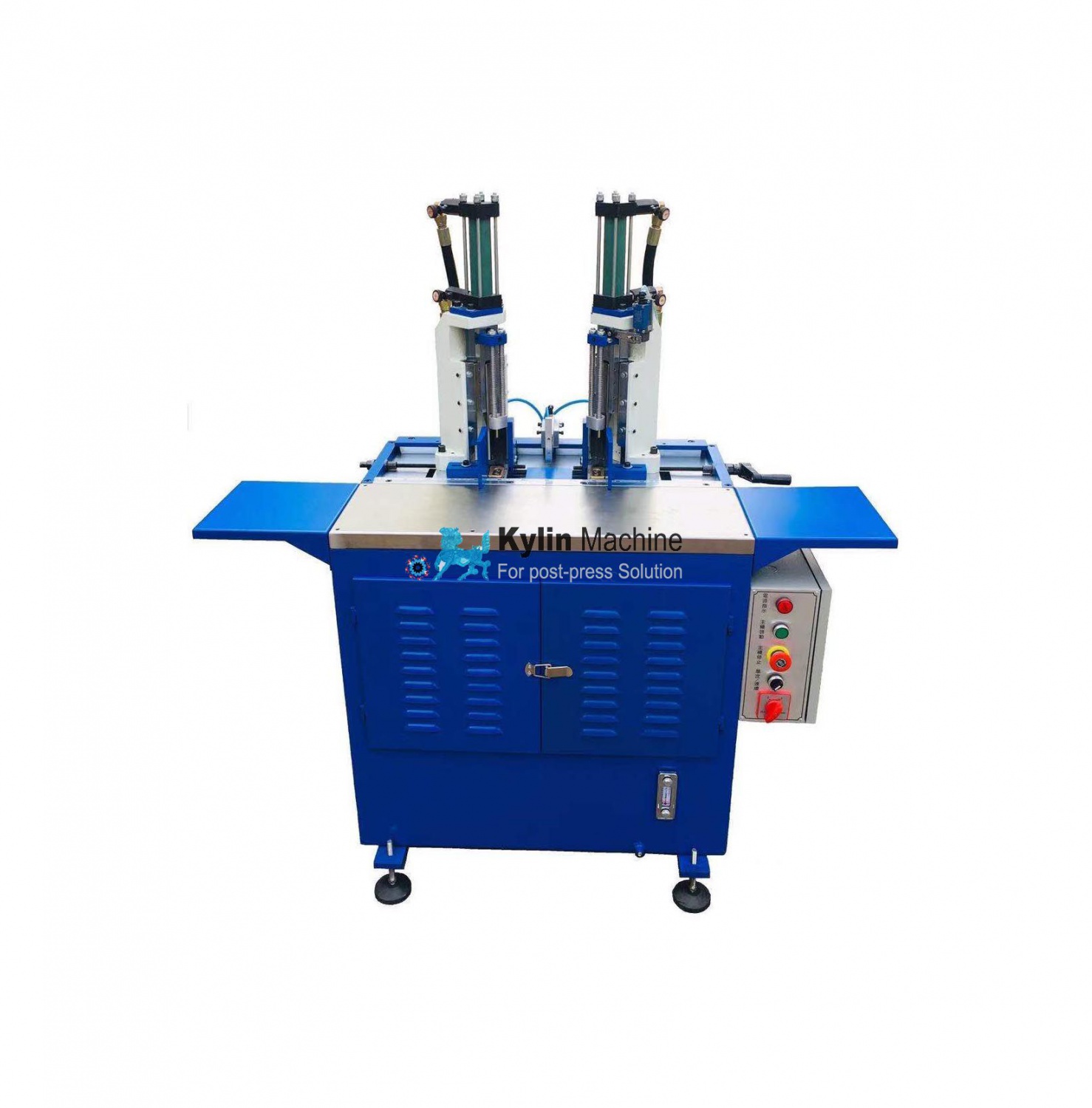

The book block router/book block corner cutter/book block trimming machine
the perfect after process of the three knifes book bock trimmer
Cutting round corner size from R3-R12
Right angle corner trimming is availale for customized
Using hydraulic dri
Online Video
Feature:
The book block router/book block corner cutter/book block trimming machine
the perfect after process of the three knifes book bock trimmer

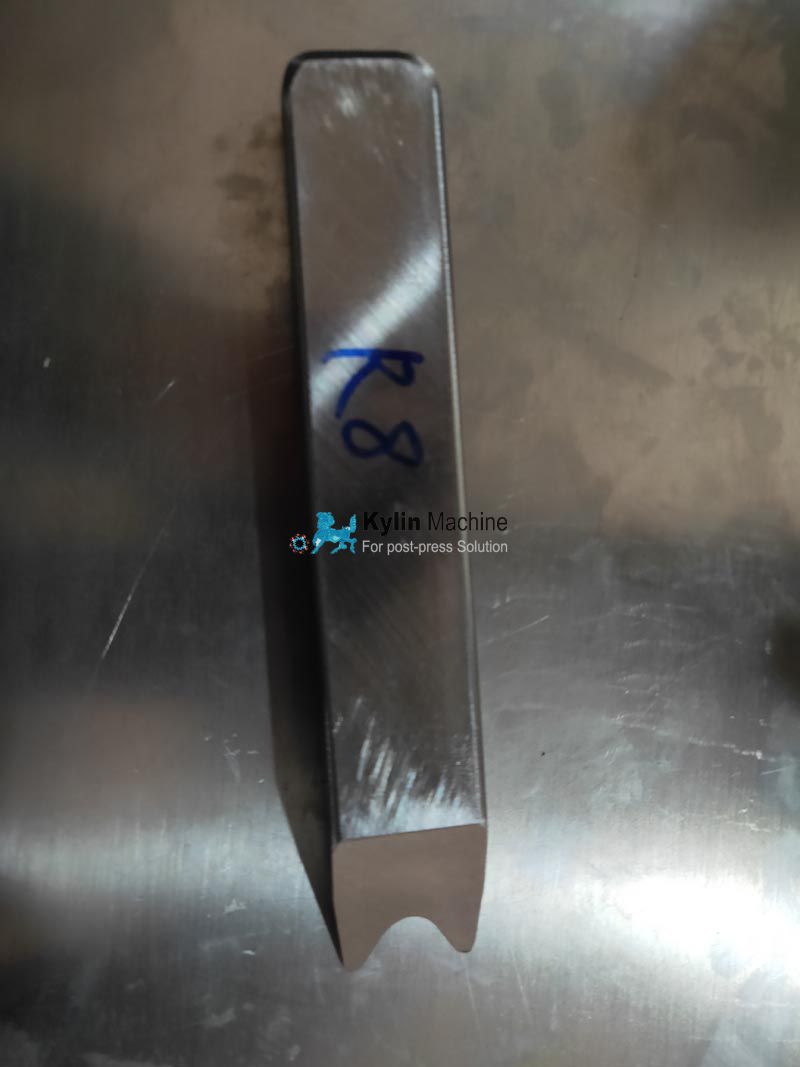

Cutting round corner size from R3-R12
Right angle corner trimming is availale for customized
Using hydraulic drive force, stable power output

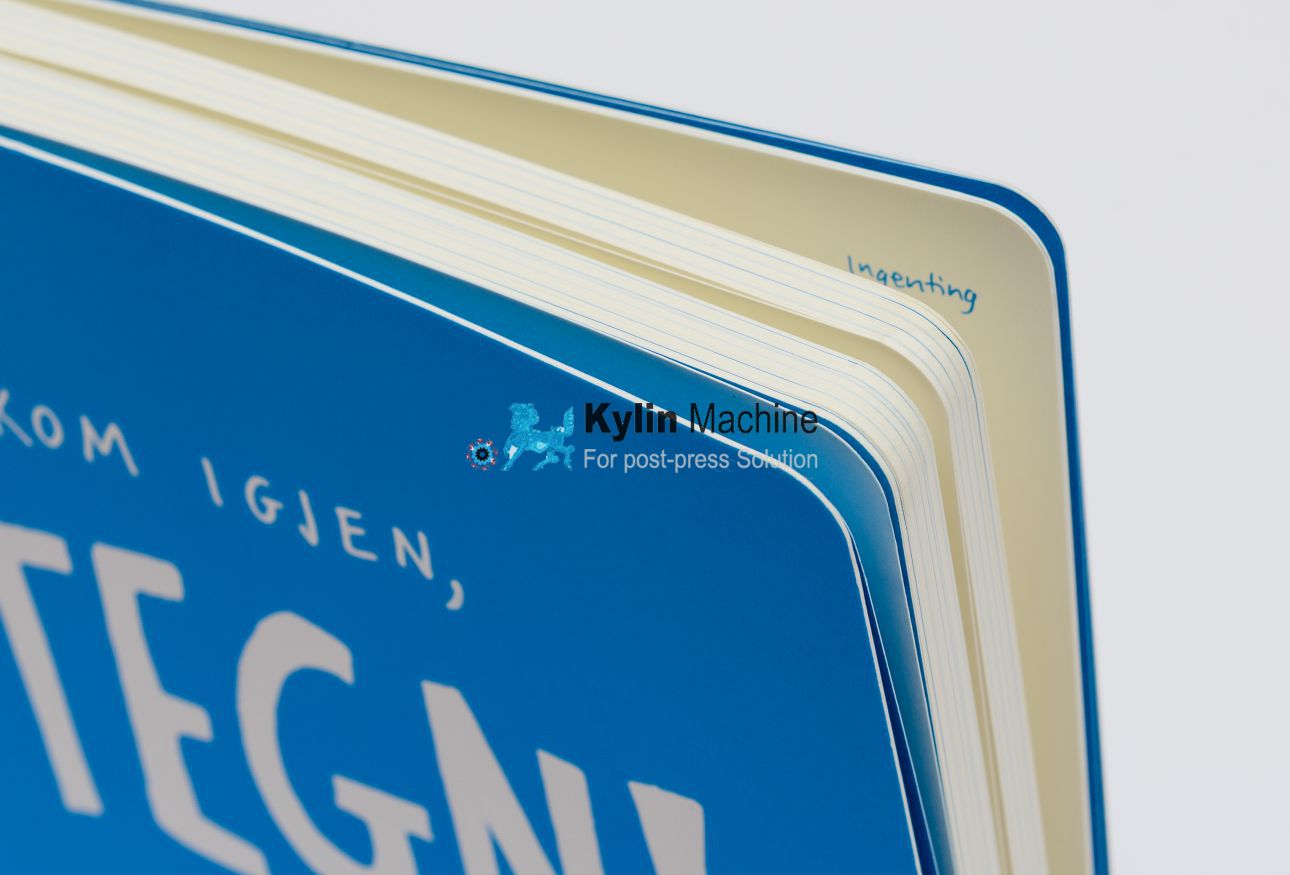

Trimming both corners of a Book / Pad / Sheets / Simultaneously Round Corners Trimming of Books, Diaries notebook etc. Simultaneously of Two Corners Trimming in “3 Energy” twin corner trimming press. Twin Corner Trimming Press Ideal Round Cornering M/C for rounding of Catalogues, Books, Exercise Notebooks, Diaries and other stationery articles etc.
Specification
| Model | Ky-100 |
| Max cutting size | 460mm |
| Min cutting size | 100mm |
| Cutting Speed | 10 cuts/min |
| Round size | R3-R12 |
| Cutting thickness | 80mm for round corner 10mm for right angle corner |
| Power drive | hydraulic drive force |
| Power | 2.2KW |
| Machine weight | 370Kg |
| Machine dimension | 1020X750X1420mm |
>
